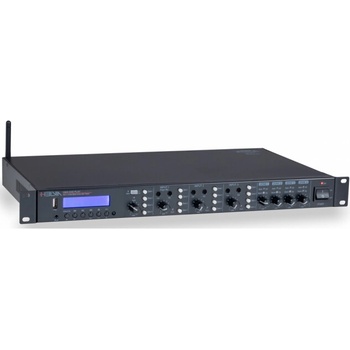

Monacor HMX-44APLAY

HELVIA has thought to respond to the main needs of those involved in small-to-medium audio installations offering versatility and compactness in an integrated solution such as the HMX-44A. This is a little gem that integrates a matrix with a 4-input, 4-output mixer, a multimedia player and four independent 60W amplifiers. A passive version is also available, without the 4 amplifiers, to be combined with external power amplifiers if necessary in case of large installations. The mixer section provides 3 combo Mic-Line inputs with 48V Phantom, a front mini-jack stereo Line input combined with the multimedia player with DAB+, FM, USB, BT. Each input has independent level adjustment, and the 3 combo Mic/Line inputs also possess high and low tone adjustment. All 4 inputs are assigned independently to the 4 zones, and each zone has output level control. The HMX-44A provides connection with HMX-MIC microphone base station via RJ-45 connection. The station is equipped with alert chimes and allows the 4 zones to be selected independently. The 60W Class-D amplifier modules integrate digital processing with limiter, overheat protection, fan control, DC-offset and in-current to ensure operation at any audio level at both 70V/100V and 4 ohms in complete safety.4-In / 4-Out Matrix4-channel mixer with 3 combo Mic/Line inputs and 1 Mini-jack Stereo Front inputRCA Line OutputsMultimedia Player with DAB+, FM, USB, BT and Remote Control48V Phantom Power for condenser microphones and Priority on Mic 14 Class-D amplifiers of 60W each70V, 100V and 4-ohm independent operation for each zoneSmall size in 1 rack unitMute function in case of emergency

• Amplifier construction: Class D + Line Transformer
• Power output: 4 x 60W rms
• Frequency response: 100Hz - 24kHz

THD:
