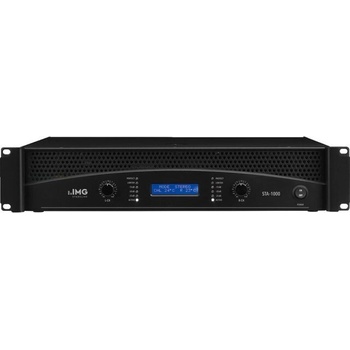

Monacor STA-1000

Profesionálne stereo PA zosilňovače, s integrovanou výhybkou a limitérom.

• LCD displej pre zobrazenie teploty, operačného režimu, funkciou ochrany
• Interná výhybka: 120Hz, 24dB/oct., prepínateľný režim: subwoofer, full range alebo satelity
• 3 operačné módy (stereo, paralelne alebo v premostení)
• Teplotne ovládané ventilátory
• 2 ovládače úrovne
• Funkcia Ground lift (uzemnenie)
• Oneskorené zapínanie reproduktorov (delay)
• Ochranný obvod s indikáciou LED - ochrana proti skratu, prehriatiu a stálemu napätiu na výstupoch
• LED kontrolky pre indikáciu operačného napätia, úrovne a limitéru pre každý kanál
• NEUTRIK SPEAKON konektory
• STA-1400, STA-1000 a STA-600 sú dodávané s 3-pin IEC zástrčkami a vhodnými sieťovými káblami.

Beat 01/2012 "Two MEGA-112 as top parts as well as one MEGA-118SUB were brought to the test. We used the power amplifiers STA-600 and STA-1400 for the top parts in bi-amping and the STA-1000 for the bass reproduction. For the functional control, we applied the digital speaker management DSM-260. The units were tested in a small factory building ... it featured many windows, a concrete floor and several tiled surfaces, allowing the high frequencies to show no mercy ... however, with the precise equalizers of the DSM-260, we were able to tame these very quickly ... the unit allows to optimise the sound quickly and intuitively ... we turned the volume up and achieved an impressive performance. The subwoofer is very stable and provides a really powerful sound. The MEGA-112 impresses by a really well-balanced sound. Full and dynamic dance music with a really great sound can thus be achieved. This PA system is able to easily provide a professional sound for 400 guests, even for the more sophisticated listener. Thumbs up. The selected PA combination is very suitable for everyone performing at temporary locations."

• Peak output power: 1,600 W
• Power rating: 1,000 W
• Power rating at 4 Ω: 2 x 500 W
• Power rating at 8 Ω: 2 x 350 W
• Power rating with 8 Ω bridged operation: 1 x 1,000 W
• Channels: 2
• Inputs: 1 V/20 kΩ
• Frequency range: 20-20,000 Hz
• Crossover network: 24 dB/oct.
• Crossover frequency: 120 Hz
• Integrated limiter: yes
• S/N ratio: > 95 dB
• Crosstalk attenuation: > 60 dB
• THD: < 0.1%
• Power supply: ˜ 230 V/50 Hz/1,600 VA
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 1,600 VA
• Admiss. ambient temp.: 0-40 °C
• Width: 482 mm
• Height: 88 mm
• Depth: 418 mm
• Rack units, RU: 2
• Weight: 15 kg
• Connections: 1 x 3-pole XLR L/R, bal. 1 x 6.3 mm jack L/R, bal. 1 x NEUTRIK SPEAKON L/R 2 x pair of screw terminals
• Packaging dimensions (W x H x L): 0.57 x 0.16 x 0.58 m
• Gross weight: 17.5 kg
• Net weight: 15.04 kg

Stiahnuť dokument 1 (PDF)

Stiahnuť dokument 2 (PDF)

Stiahnuť dokument 3 (PDF)
